cpvc storage thermostatic shower mixer valve fittings Edison company

cpvc storage thermostatic shower mixer valve fittings Edison company

HVAC Type
Heating
Application
Solar Hot water system
Payment Terms
T/T
Delivery Time
With 25 workdays after deposit
Material
Lead free DZR brass body
Size
1/2
Company Advantages
1. shower temperature control is very competitive simply because its reasonable structure and thermostatic shower mixer valve. The product is ultra cost-effective with its strong performance
2. Edison Co., Ltd. has continued to improve thermostatic valve quality management system. The product has a good sealing property
3. temperature valve is geared to the needs of thewater temperature mixing valve, and is provided with peculiarity such as temperature control valve for hot water. It can serve the customers for many years with no aging issues
4. Edison Co., Ltd. is where precision and experience come together for tempered water control valve production. It has been certified under TMV3 and NSF.
5. tempering valve get great attention for excellent properties such shower temperature control valve. It is an ideal choice for customers for its supreme strong compressive strength

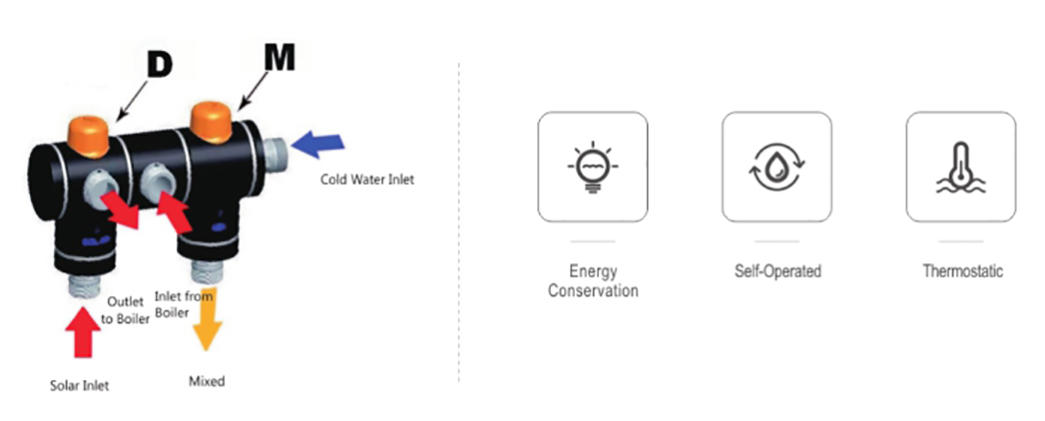

The W39-S1501 solar storage to boiler thermostatic regulating valve is a self-operated device, automatically controls and optimizes the thermal energy contained in the solar water storage, ensures domestic hot water is distributed throughout the system at a controlled optimum temperature.
The model features utmost energy saving optimization, automatic control (no power consumption), high thermostatic accuracy as well as ensures the users always receive hot water and assort with heat insulation sheath, reduce heat loss.

Specifications

bg


Product

W39-S1501 Solar TMV

Medium

Life water

Max. working pressure

10 bar(static); 5 bar(dynamic)

Max. inlet temperature

212°F

Temperature setting range

95-131°F

Factory setting

109°F

Accuracy

±2°F

Max. working pressure difference ratio between cold and hot water

2:1

Min. temperature difference between inlet hot water and the out mixed water

50°F

Min. flow rate for stable operation

40L/min

Spec.

M29 x1.5 * G3/4

Product Details

bg

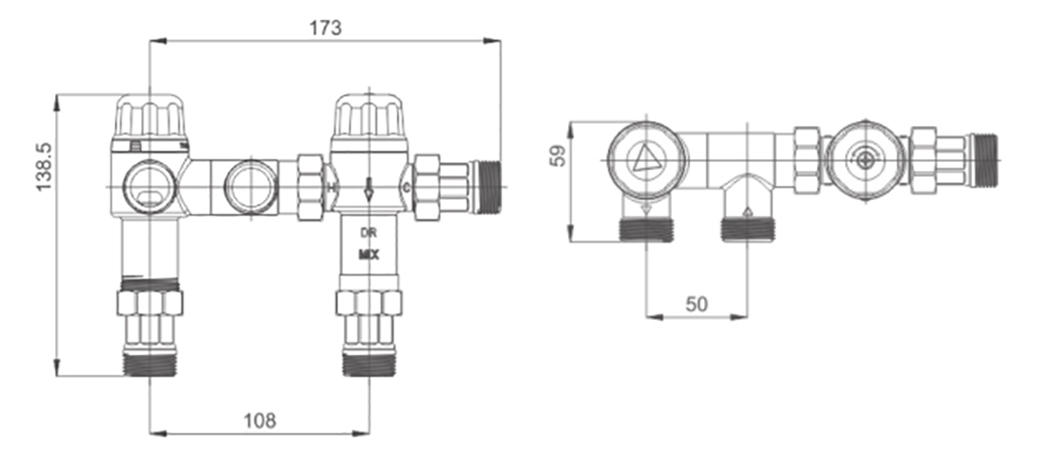

Dimensions:

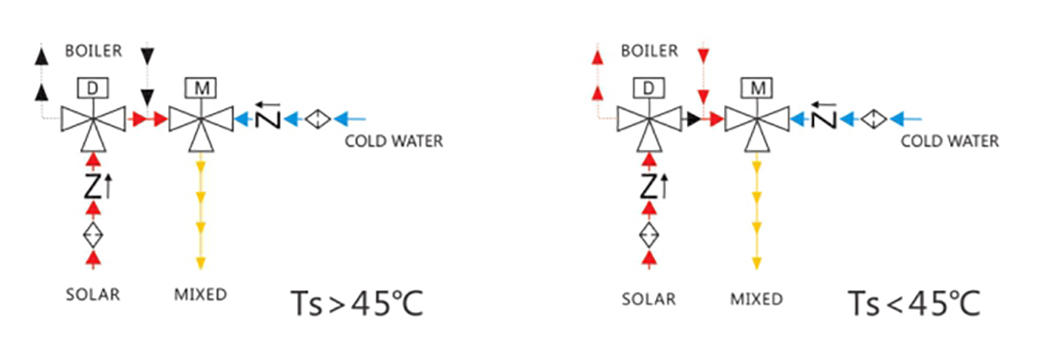

Hydraulic Diagram:



Pressure System Diagram:

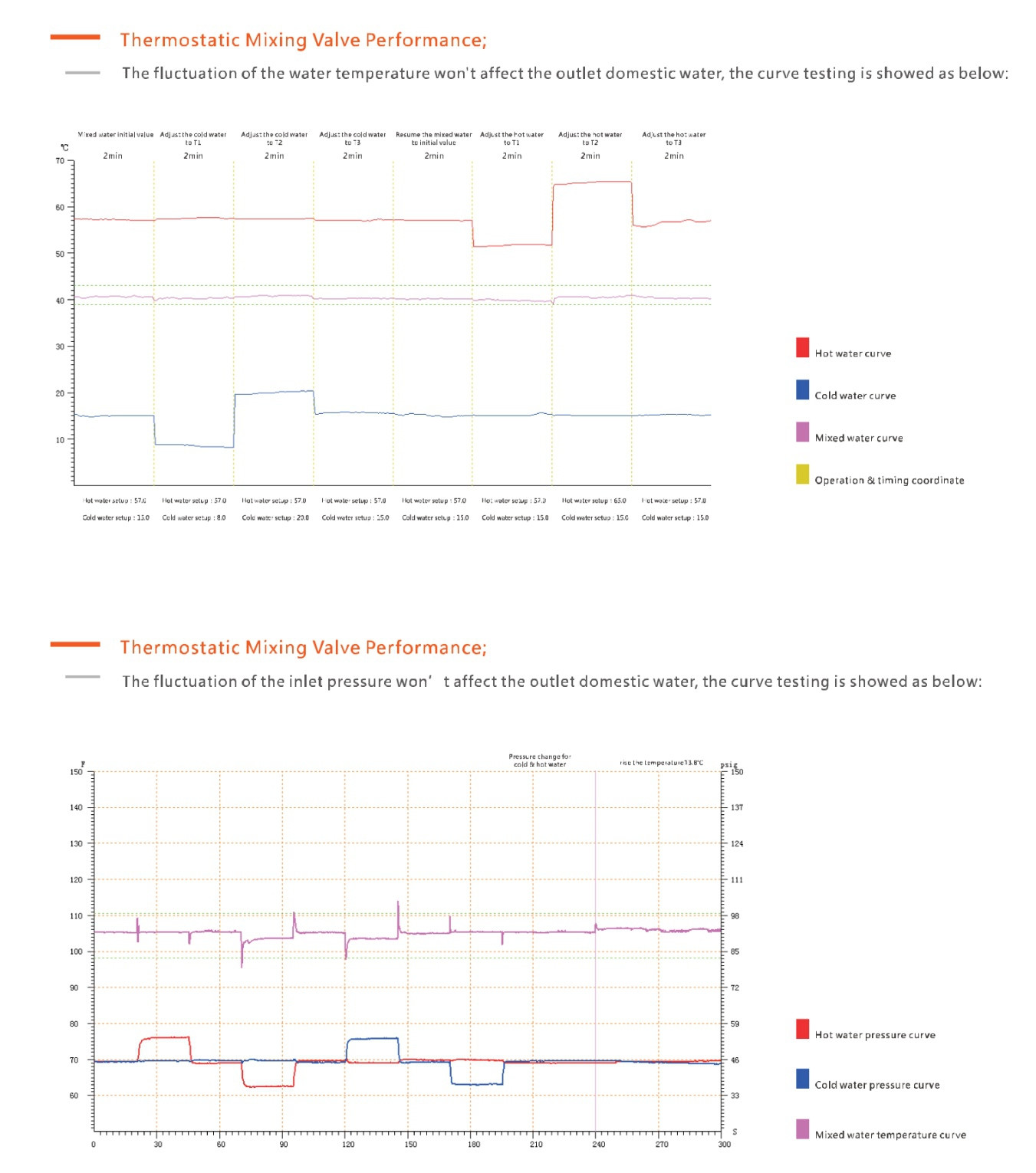

Thermostatic Mixing Valve Performance:




Company Features
1. Founded decades of years ago, Edison Co., Ltd. is a global ODM/OEM manufacturer of shower temperature control. All manufacturing thermostatic valve processes are done in our own factory to control quality.
2. The plant of Edison has advanced machines and professional testing equipment.
3. The technology of Edison Co., Ltd. is at the domestic advanced level. Quality service ensures that we maintain the leadership position in temperature valve industry.
