Edison touch room thermostat screen for larger family homes

Edison touch room thermostat screen for larger family homes

Edison touch room thermostat screen for larger family homes

HVAC Type
Heating and Cooling
Application
4-pipe FCU, central air conditioning
Certification
CE (EMC, LVD)
Payment Terms
T/T
Delivery Time
With 25 workdays after deposit
Color
White / Black
Dimension
86*110*12.4mm (W*H*D)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Comparison
Compared with other products in the same category, hvac controls has outstanding advantages which are mainly reflected in the following points.
Company Advantages
1. The whole body of Edison internet thermostat is made of pure aluminum, which is more durable and has excellent anti-corrosion ability and never changes color.
2. The product is extremely weather resistant. It can withstand high and low temperatures far more efficiently than other bulbs. Thus, it can be applied in some harsh environments.
3. The product is not only able to produce steady light without flicker but also it has a fast response to the immediate turning on and off.
4. Its development history determines that it will have more potentials for development.
5. Zhuhai Edison Smart Home Co., Ltd. always offers reliable services with competitive price.


Edison touch room thermostat screen for larger family homes-1


TX-928-222D room thermostat is designed to control fan coil units speeds (H/M/L/Auto) and motorized valves in the central air conditioning and generally applied in commercial, industrial, residential installation. Typically applications included such as hotels, shopping malls, commercial offices, government offices, hospital, larger family homes, villas, apartments, etc….
The model futures with smoothly touch screen, child-proof locks, retain the last events and parameter settings after a loss of power.
Low/high-temperature protection will be activated when room temperature below 5 ℃/exceed 60℃ to prevent water pipe from freezing or burning, fan turns on delay, Anti-cold air, more comfortable, energy saving and life safety.

Specifications

bg


Model NO.

TX-928-222D

Communication

Modbus RTU

Power supply

85VAC ~ 240VAC, 50 ~ 60Hz

Temperature setting range

5 ~ 35 °C

Current

3A

Wiring port

≤1.5mm²

Accuracy

±1°C

Tolerance between setting and ambient temperature

1-5℃(Default: 1℃)

Low -temperature protection

Below 5°C

Material

ABS Flameproof Plastic

Suitable valve

2-Line or 3-Line

Ambient temperature

0~50℃, <RH90%

IP class

20

Material

ABS Flameproof Plastic

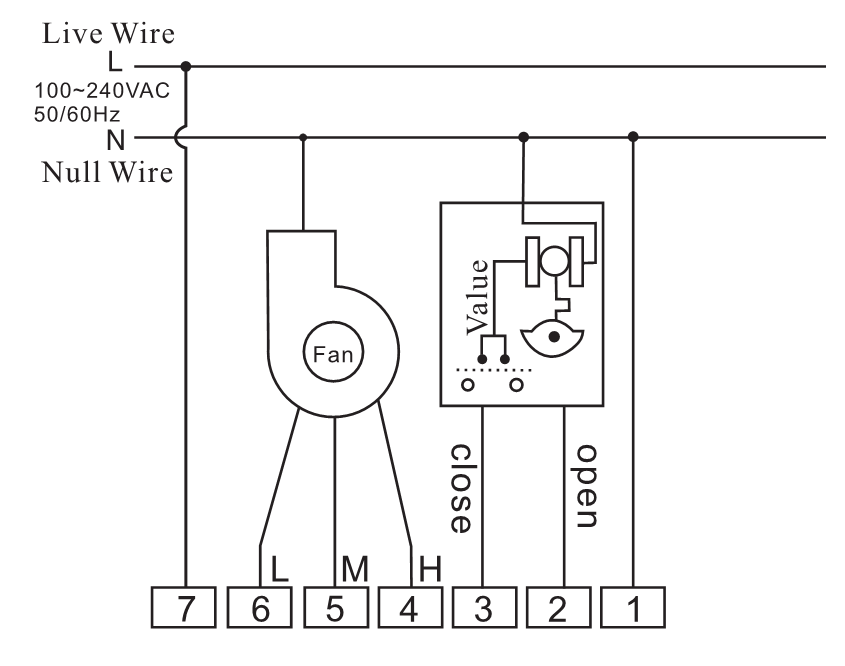

Wiring Diagrams

bg


Edison touch room thermostat screen for larger family homes-2Edison touch room thermostat screen for larger family homes-3


Dimensions

bg


Edison touch room thermostat screen for larger family homes-4


Certificate

bg


Edison touch room thermostat screen for larger family homes-5
Edison touch room thermostat screen for larger family homes-6



Company Features
1. Specializing in manufacturing all types of room thermostat and related products, Zhuhai Edison Smart Home Co., Ltd. is notable for the strong competence in this field.
2. It is the progressive technology that our wireless thermostat has won the popularity in the field.
3. The Edison desire is to win the global market and become a internet thermostat manufacturer. Get price! Edison HVAC control valves can provide far more value for you than other brands. Get price! We ​​highly values after-sales service through Edison HVAC control valves. Get price! With fantastic vision, Zhuhai Edison Smart Home Co., Ltd. intends to become the most aggressive wlan thermostat supplier.
Connection Diagram
Product Description
Working Voltage
AC85~265, 50/60HZ; 24V is also available
Current Load
3A
Temperature Control Accuracy
±1ºC
Setting Temperature Range
10~40 ℃
Consumption
<0.5W
Install Way
Wall Insert
Warranty
Wall Insert
MOQ
1 Piece

Stylish & Modern Room Thermostat: Square touch-screen, smooth surface.

Feature Function
1. Modern Design, Glass Touch Screen, Classy Black.
2. 2 Pipe or 4 Pipe, 3 Fan Speed, Heating, Cooling & Ventilation Modes.
3. Programmable Clock Function, Max 4 Time Points.
4. Low, Mid, High and Auto speed mode
