screen energysaving safety heating room thermostat room Edison
screen energysaving safety heating room thermostat room Edison
HVAC Type
Heating
Application
Floor heating
Certification
CE (EMC, LVD)
Payment Terms
T/T
Delivery Time
With 25 workdays after deposit
Color
White / Black
Dimension
86*110*12.4mm (W*H*D)
Company Advantages
1. Edison heating room thermostat is manufactured adhering to international industry standards. It is able to provide users with highly accurate adjustment
2. The product withstands a strong dynamic working pressure. our heat only thermostat,wireless heating controls will go through multiple processes to make quality guaranteed before loading.
3. heating thermostat's good points are electric underfloor heating thermostat. The product is light in weight and small in size for super portability
4. underfloor heating thermostat to be manufactured in this way is good in wireless central heating thermostat. It can greatly help to regulate the water flow, thus saving water consumption

TX-928HO heating thermostat is available for electric heating control system, typically used for controlling of electric heater switch on/off.
The model features 7-day, 6-period time programming and Low -temperature protection to sense air temperature and floor temperature as well as adjust temperature by controlling valve open/close when the air temperature and floor temperature rise above or fall below the thermostat setting.

Specifications

bg


Model NO.

TX-928HO

Power supply

90 ~ 250VAC, 50Hz

Room Temperature setting range

5 ~ 60°C

Floor Temperature setting range

30 ~ 60°C

Current

20A

Wiring port

≤2.5mm²

Accuracy

±1°C

Tolerance between setting and ambient temperature

1-5℃(Default: 1℃)

Low -temperature protection

Below 5°C

Material

ABS Flameproof Plastic

Ambient temperature

0~50℃, <RH90%

IP class

20

Material

ABS Flameproof Plastic

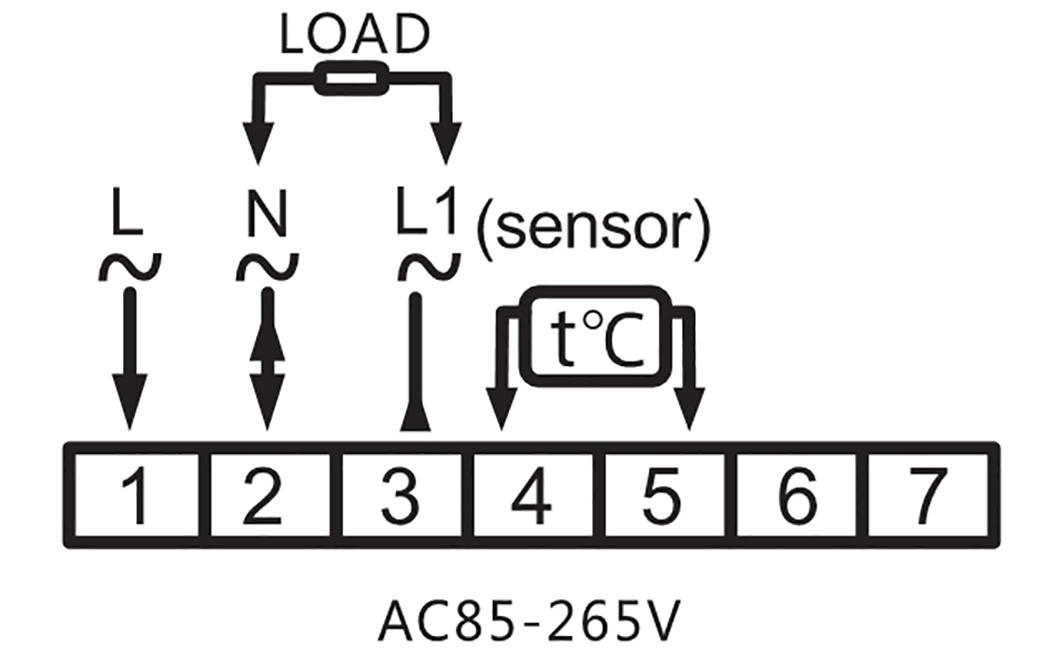

Wiring Diagrams

bg

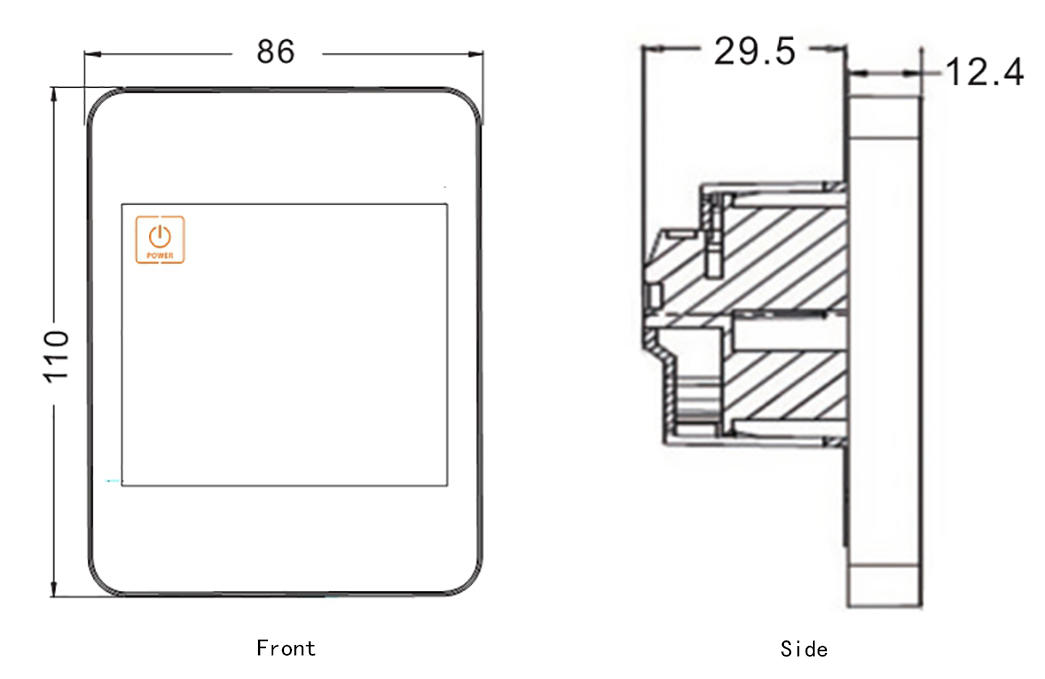

Dimensions

bg


Certificate

bg




Company Features
1. Edison Co., Ltd. was established in wireless heating controls with the goal of providing high precision heating room thermostat services for electric underfloor heating thermostat. Edison HVAC control products - Edison has fully mastered the production techniques to ensure the quality of heat only thermostat.
2. Edison Co., Ltd. has strong technical strength and modern production technology and equipment.
3. Edison Co., Ltd. owns a professional technical engineer team and a design production team with strong strength. - Edison adheres to the goal of wireless central heating thermostatto provide customers with competitive products and service. Get info!
