touch thermostats touch series for villas

touch thermostats touch series for villas

Touch thermostats touch series for villas

HVAC Type
Heating and Cooling
Application
2-pipe FCU, central air conditioning
Certification
CE (EMC, LVD)
Payment Terms
T/T
Delivery Time
With 25 workdays after deposit
Color
White with gold side
Dimension
86*110*10mm (W*H*D)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
hvac thermostat can be applied to different industries, fields and scenes.Edison is committed to producing quality hvac thermostat and providing comprehensive and reasonable solutions for customers.
Enterprise Strength
  • Edison has a relatively complete service management system. The professional one-stop services provided by us include product consultation, technical services, and after-sales services.
Company Advantages
1. Edison thermostats is designed by ourselves with the inspiration we find at various trade shows.
2. This product meets the most stringent quality requirements and can be used for a long time.
3. The product is waterproof by nature. It is therefore very resilient and can be used in all kinds of weather. The rate of deterioration is also extremely low.
4. The efforts have contributed to the success of Edison's expansion of the market.


touch thermostats touch series for villas-1

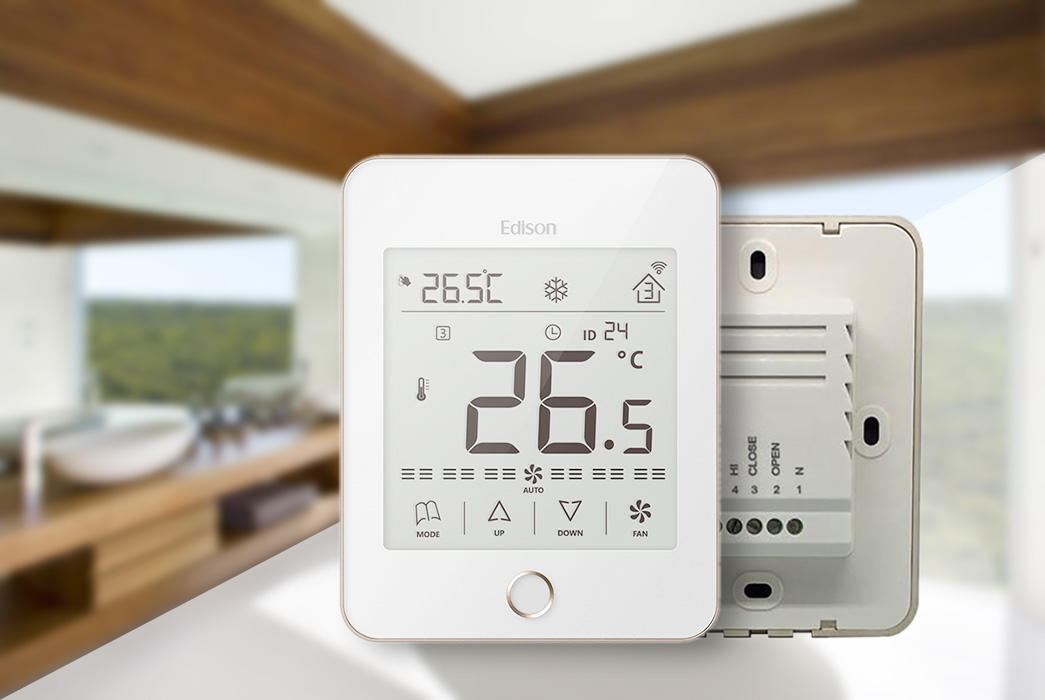

TX-937-222D-N3 room thermostat integrates with RS485 Modbus communication to be used controlling 2-pipe fan coil units speeds (H/M/L/Auto) and motorized valves in the central air conditioning and generally applied in commercial and industrial installation. Typically applications included such as hotels, shopping malls, commercial offices, government offices, hospital etc….
The model futures with smoothly touch screen, child-proof locks, retain the last events and parameter settings after a loss of power.
Low/high-temperature protection will be activated when room temperature below 5 ℃/exceed 60℃ to prevent water pipe from freezing or burning, fan turns on delay, Anti-cold air, more comfortable, energy saving and life safety.

Specifications

bg


Model NO.

TX-937-222D-N3 Modbus Room Thermostat

Communication

Modbus RTU

Power supply

85VAC ~ 240VAC, 50 ~ 60Hz

Temperature setting range

5 ~ 35 °C

Current

3A

Wiring port

≤1.5mm²

Accuracy

±0.5°C

Tolerance between setting and ambient temperature

1-5℃(Default: 1℃)

Low -temperature protection

Below 5°C

Material

ABS Flameproof Plastic

Suitable valve

2-Line or 3-Line

Ambient temperature

0~50℃, <RH90%

IP class

20

Material

ABS Flameproof Plastic

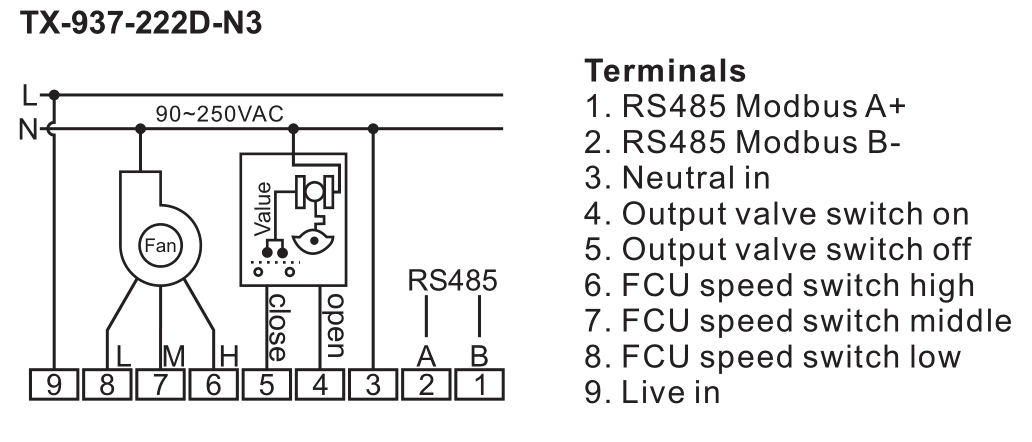

Wiring Diagrams

bg


touch thermostats touch series for villas-2

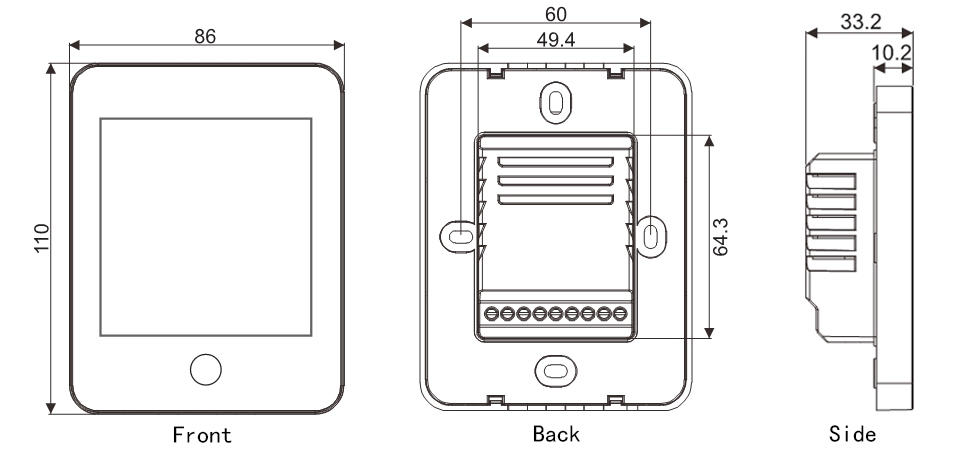

Dimensions

bg


touch thermostats touch series for villas-3


Certificate

bg


touch thermostats touch series for villas-4
touch thermostats touch series for villas-5



Company Features
1. By virtue of professional team and digital thermostat , Zhuhai Edison Smart Home Co., Ltd. is opening wider market for its thermostats .
2. With the unique technology and stable quality, our wireless thermostat win a wider and wider market gradually.
3. We constantly work with our clients and suppliers to ensure that all our endeavors are strategically and culturally implemented to achieve: economically sustainable development, protection of the environment, and social enrichment. Inquire! All of our production activities comply with relevant legislative and regulatory environmental requirements. We have set up a QC team to control waste and pollution level. We are convinced that our long-term success depends on our capacity to deliver sustainable value to our stakeholders and to wider society. Through our integrated leadership approach, we strive to become an even more sustainable company and maximize the positive impact we can have. We are committed to social responsibility in the communities we operate, focusing on reducing carbon footprint, providing time and financial support to the communities in which we live and work, and helping customers become more sustainable.
